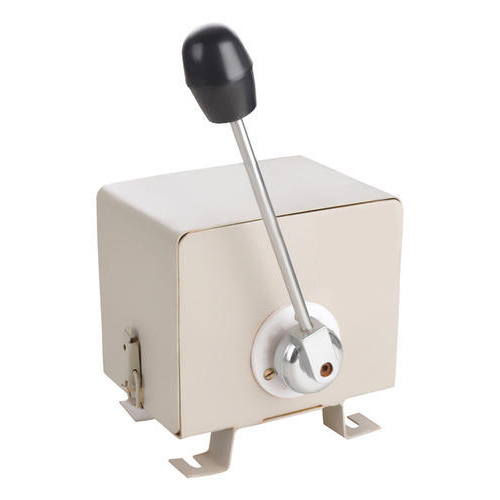

Master Controller

Name: Master Controller
Brand: ELECTROMECH ENGINEERS
Price: 3000 INR
Availability: InStock

3000 INR

Get a Price/Quote

Product Details:

Circuit Type Linear & Cross circuit
Automation Grade Manual
Number of Module Single
Max. Current 10 A
Finish Type Powder Coated
Response Time Instantaneous
Rated Voltage 500 V AC
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Master Controller Price And Quantity

Minimum Order Quantity 10 Piece
Price 3000 INR

Application EOT Crane Control Panel
Operating Method Hand Operated
Number of Steps 2 to 5 per lever
Enclosure Material Sheet Steel with Powder Coating

Master Controller Product Specifications

Contact Resistance Less than 50 m
Mechanical Life More than 1 million operations
Temperature Range -10C to +60C
No Of Poles Up to 6 Poles
Color Cream And Black
Operating Temperature -10C to +60C
Protection Level IP54
Current Rating 10 A
Weight 2.3 kg
Stoke 32 mm per lever
Number of Module Single
Mounting Type Panel Mount
Max. Current 10 A
Max. Voltage 500 V AC
Rated Voltage 500 V AC
Material Mild Steel
Finish Type Powder Coated
Response Time Instantaneous
Circuit Type Linear & Cross circuit
Insulation Resistance More than 1 M at 500 V DC
Automation Grade Manual
Product Type Master Controller
Size 10-20 Inch

Application EOT Crane Control Panel
Operating Method Hand Operated
Number of Steps 2 to 5 per lever
Enclosure Material Sheet Steel with Powder Coating

Master Controller Trade Information

Payment Terms Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 10 Piece Per Day
Delivery Time 2-3 Days
Main Domestic Market All India

Product Description

Master Controller are of cam type where in contracts are actuated by individual cams mounted on operated shaft. These controllers are used for remote operation of contractors equipment controlling heavy duty E. O. T. cranes & rolling mill drives.Master controller also called torque controller,torque motion controller,drum controller,crane master controller.

The controllers are made in dust proof enclosure in IP-54 degree of protection, up to 6 notches either side with maximum 24 contacts as per desired sequence with spring return arrangements & dead man's handle arrangement are available. And master controllers are compact upto 4-0-4 step suitable for Hoists-Grab, CT-LT maximum contact 16 per motion with spring return arrangements.
